Voice Agent Architecture: How AI Phone Agents Work

A voice agent architecture is the set of components that lets an AI system hold a phone conversation: it receives call audio, turns speech into text or meaning, decides what to say or do, and speaks back. Unlike a text chatbot, which receives complete messages, a voice agent works on a continuous audio stream. Every stage has to run in near real time, or the conversation feels broken.

This guide covers the main components, the two common design patterns, where delay comes from, multilingual calls, integrations, compliance, and testing.

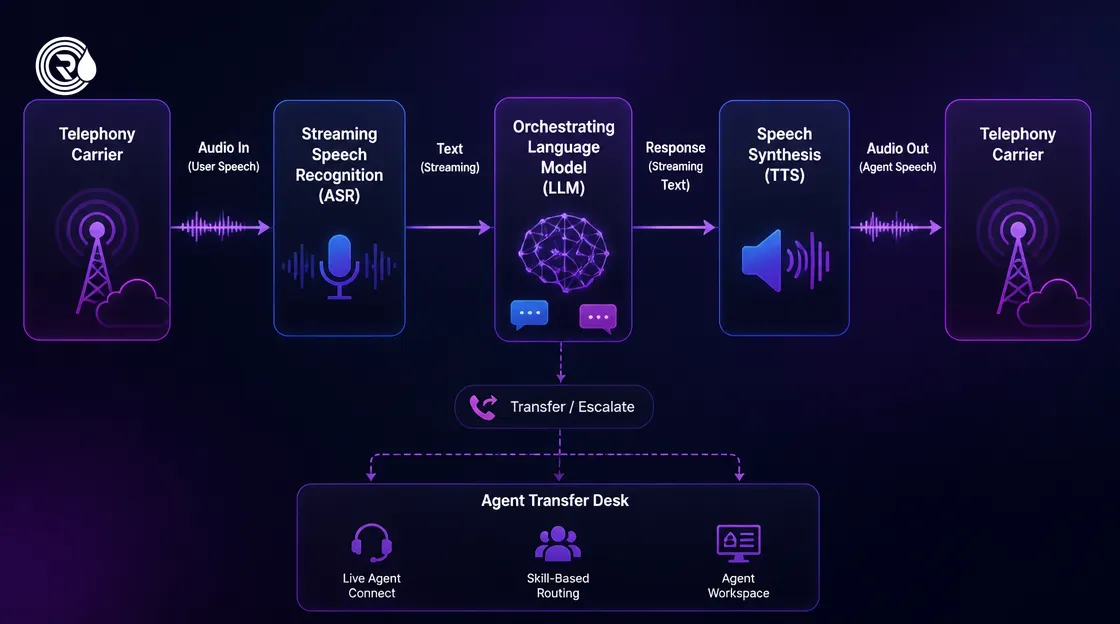

Core Components of a Voice Agent Architecture

Most AI phone agents are built from five parts, working on audio as it arrives rather than waiting for a full turn:

1. Telephony connection: the call reaches the system through a phone carrier or SIP provider. The Session Initiation Protocol, defined in IETF RFC 3261, is “an application-layer control (signaling) protocol for creating, modifying, and terminating sessions.” The audio itself travels as a separate media stream.
2. Streaming speech-to-text: a speech recognition engine transcribes the caller as they speak, producing interim text and then a final version when the caller pauses.
3. Language model and business logic: the model reads the transcript, keeps track of the conversation, and calls tools, such as looking up an order or checking an appointment slot.
4. Streaming text-to-speech: the reply is converted to audio in small chunks and streamed back to the caller, so speech can start before the full reply is written.
5. Human handoff: when the agent cannot help, or the caller asks for a person, the call transfers to a human with a summary of what has happened so far.

Getting these parts to work together reliably is the core of AI voice agent development, because the caller experiences them as one conversation.

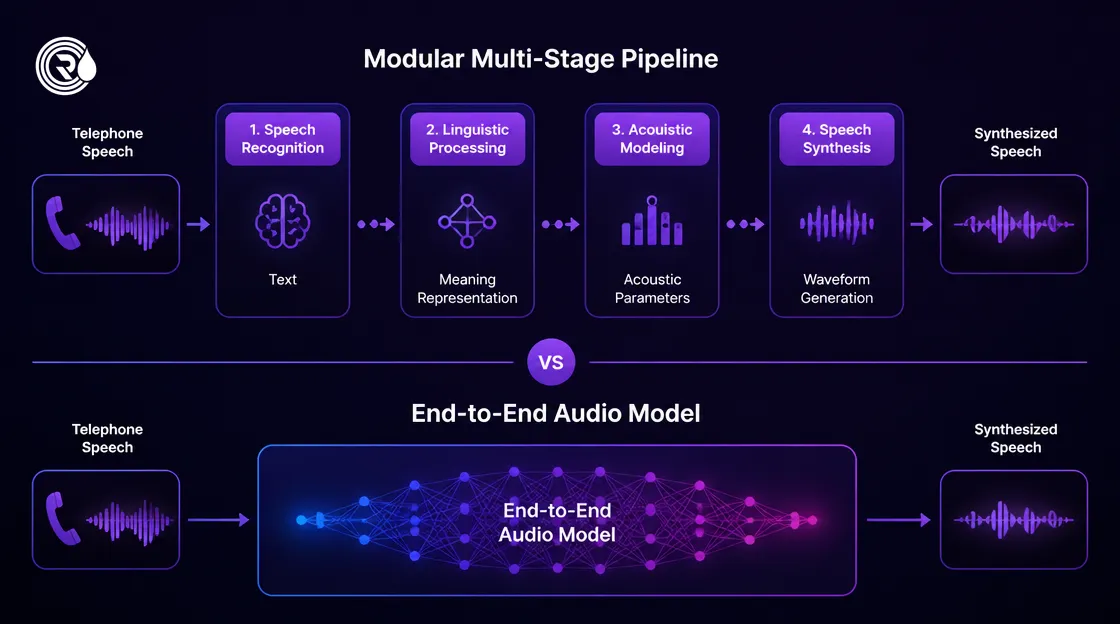

Cascaded Pipelines vs Speech-to-Speech Models

There are two common ways to arrange the middle of the system.

A cascaded pipeline runs speech-to-text, then a language model, then text-to-speech. Because every step produces text, teams can inspect and log the transcript, apply rules before a tool is called, and replace one component without rebuilding the others. The cost is that each handoff adds delay, and converting speech to text drops information such as tone and emphasis.

A speech-to-speech model takes audio in and produces audio out within a single model. That removes several handoffs and can keep more of the caller’s tone and rhythm. The trade-off is less visibility into intermediate steps, which makes debugging, logging, and rule enforcement harder.

The table summarizes the trade-offs.

A cascaded design is easier to test and audit, which makes it a practical starting point. Speech-to-speech is worth evaluating where natural pacing matters more than fine-grained control.

Turn-Taking, Latency, and Interruptions

Pacing decides how natural a call feels. Long silences make callers think the line has dropped. Replies that start too early cut callers off mid-sentence.

Delay builds up in several places:

• Network and telephony: packaging and transmitting audio frames between the carrier and your system.
• End-of-turn detection: deciding whether a pause means the caller has finished or is only thinking.
• Model response time: the time before the language model produces the first part of its reply, which grows with long prompts and conversation history.
• Tool calls: waiting for a CRM, booking system, or database to respond.
• Speech synthesis: generating enough audio to start speaking smoothly.

Interruptions, often called barge-in, need their own handling. When the caller speaks while the agent is talking, the system has to detect it quickly, stop playback, discard the unspoken part of the reply, and treat the new input as the next turn. This is a state management problem as much as an audio one, the same kind of orchestration found in wider AI agent development.

Multilingual and Mixed-Language Calls

Voice agents for India and other multilingual markets face extra difficulty:

• Accents and dialects: pronunciation varies widely by region, and recognition accuracy can drop for speech that differs from a model’s training data.
• Code-mixing: callers often switch languages within one sentence, for example moving between Hindi and English. Models trained mostly on one language can mishear or misread these sentences.
• Names, numbers, and addresses: local names, spoken numbers, and addresses are where transcription errors cause the most damage, because they feed directly into bookings and orders.

Test with recordings that match your real callers, including the languages they mix, before choosing a speech recognition or synthesis provider.

Integrations: Where the Value Comes From

A voice agent becomes useful when it can act on live business data. Common integrations include:

• CRM: recognizing returning callers, loading their history, and saving a structured call summary.
• Calendars and scheduling: checking availability, booking appointments, and sending confirmations.
• Ticketing: logging issues and updating ticket status.
• Orders and payments: looking up order status, and sending card entry to a secure keypad (DTMF) capture flow so card numbers are never spoken to the model.

Each integration needs authentication, error handling, and a fallback when the other system is slow or unavailable. This is standard AI integration services work, and it often takes more effort than the voice layer itself.

Compliance, Testing, and Human Handoff

Plan for these before any live calls:

• Call recording consent: recording laws differ by country and state, and some require consent from everyone on the call. Announce recording at the start of the call and confirm the rules for each market with legal counsel.
• AI disclosure: tell callers they are speaking with an AI system. It sets expectations and avoids misleading anyone.
• US outbound calls: in its Declaratory Ruling FCC 24-17, released in February 2024, the US Federal Communications Commission confirmed that the Telephone Consumer Protection Act’s restrictions on “artificial or prerecorded voice” encompass current AI technologies that generate human voices. Such calls require the prior express consent of the called party, absent an emergency purpose or exemption.

Testing should cover background noise, poor connections, interruptions, callers who change their minds, and tool failures. Replay test calls after every change to prompts or components.

Define clear handoff rules. Transfer to a person when the caller asks, when the agent fails to understand the request after a set number of attempts, when the caller is clearly upset, or when the task is outside what the agent is allowed to do.

Conclusion

A reliable voice agent architecture comes down to a few decisions: a cascaded or speech-to-speech design, a latency budget for every stage, interruption handling, integrations with real fallbacks, and compliance and handoff rules set before launch. Start with one narrow call type, test it against real caller audio, and expand once it works well.
