AI Agent Architecture: 5 Essential Production Components

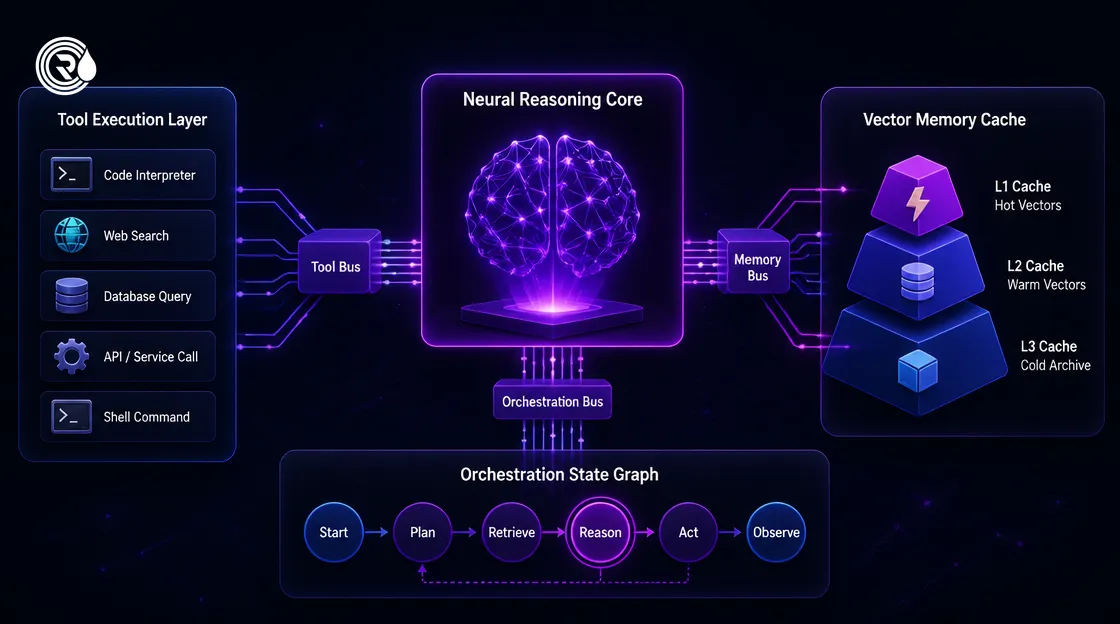

Building autonomous software requires moving beyond simple prompt-response interactions. A robust AI agent architecture provides the structural backbone that allows a foundation model to plan, interact with real-world systems, retain state, and execute complex workflows without constant human prompting.

Production AI agent architecture is a modular software framework combining foundation models, reasoning loops, tool-calling interfaces, persistent memory, and deterministic orchestration. Unlike static chatbots, this system enables autonomous decision-making, executes multi-step plans across external APIs, maintains stateful context, and enforces runtime guardrails to solve complex business problems reliably.

For technology leaders evaluating autonomous systems, understanding these architectural layers is essential. Moving an agent from prototype to enterprise deployment requires strict trade-offs between autonomy, latency, computational cost, and determinism. Organizations investing in enterprise AI agent development must treat the agent not as an isolated model, but as a distributed software system.

1. The Model and Reasoning Loop

At the center of any AI agent architecture sits the reasoning loop. The model acts as the core processing engine that interprets user objectives, analyzes environmental feedback, and determines subsequent steps. In academic research published by Yao et al. in October 2022, the ReAct framework (arXiv:2210.03629) established that interleaving reasoning traces with tool execution significantly reduces error propagation compared to pure action or pure thought loops.

Reasoning Patterns in AI Agent Architecture

In production systems, engineering teams typically choose between three primary reasoning models:

• ReAct (Reason + Act): The agent alternates between thought, action, and observation in a continuous cycle until task completion.
• Plan-and-Solve: The model generates a complete multi-step plan upfront, then executes each step sequentially, replanning only when an execution failure occurs.
• Reflexion: The model evaluates its own intermediate results against explicit success metrics, as established in the Reflexion paper (arXiv:2303.11366), and modifies its memory context before retrying.

Every reasoning pattern introduces distinct trade-offs. While dynamic reasoning loops offer flexibility for ambiguous goals, they increase token consumption and introduce unpredictable latency. Selecting the right foundation model requires balancing raw reasoning depth with execution speed and context window capacity.

2. Tool Execution and Action Layer

An agent without tools is merely an advisor. The tool execution layer connects the reasoning model to external environments, allowing it to query databases, call third-party APIs, read file systems, and execute code. In modern API designs, this interaction is facilitated by structured schema interfaces, such as the function calling specifications documented by OpenAI Platform Documentation, where models output structured JSON objects describing intended function names and arguments rather than free-form text.

The primary architectural decision in the tool layer centers on execution safety and schema boundaries:

• Deterministic Tool Interfaces: Tools should have strictly validated input parameters using schemas like JSON Schema or Pydantic models.
• Sandboxed Execution Environments: If an agent generates or executes code, it must run inside isolated microVMs, WebAssembly runtimes, or locked containers to prevent unauthorized system access.
• Idempotency and Error Recovery: Network timeouts and schema mismatches are common. Production tools must be idempotent and return machine-readable error messages that allow the agent to self-correct rather than crash.

3. State Management and Memory Systems

Context windows are finite and expensive. A production agent requires sophisticated memory systems to maintain coherent multi-turn interactions and retain knowledge across sessions. Memory in modern systems is split into distinct operational tiers:

For domain knowledge retrieval, combining vector embeddings with keyword search through retrieval-augmented generation provides grounded factual context. CTOs must decide whether to store full conversation histories or distill past interactions into semantic summaries before writing to permanent storage.

4. Orchestration and Multi-Step Planning

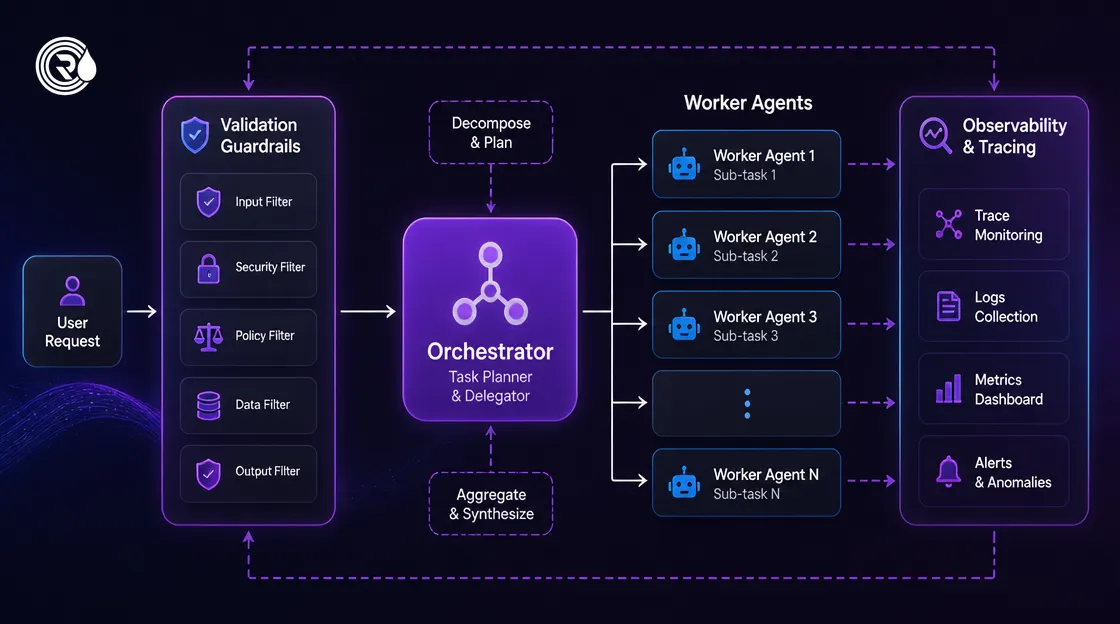

Early agent frameworks relied on unbounded autonomous loops where a single model controlled everything. In production, unbounded autonomy often leads to infinite loops, runaway API costs, and brittle failure states. Modern architectures favor controlled orchestration engines. For example, the open-source LangGraph framework documentation defines agent workflows as stateful cyclic graphs where nodes represent computations and edges define conditional routing.

On December 19, 2024, Anthropic published research on building effective agents, highlighting that production success often stems from combining structured workflows with targeted autonomy rather than deploying single monolithic agents. Key architectural patterns include:

• Router Patterns: A lightweight classifier model directs incoming queries to specialized sub-systems or deterministic code paths.
• Orchestrator-Worker Patterns: A central planning agent decomposes a complex objective into sub-tasks and delegates them to specialized worker agents running in parallel.
• Evaluator-Optimizer Loops: One model generates solutions while an independent critic model evaluates output quality against predefined rubrics before final delivery.

5. Safety Guardrails and Observability

Enterprise adoption depends on safety, predictability, and auditability. The guardrails and observability layer acts as an immune system around the agent, validating both inputs and outputs while logging every step of the execution lifecycle.

Production guardrails must operate at multiple stages:

• Input Sanitization: Detect prompt injections, jailbreak attempts, and sensitive data leakage before prompts reach the model.
• Output Verification: Validate model responses against format constraints, schema requirements, and business logic before passing data to users or tools.
• Human-in-the-Loop Triggers: Non-reversible actions, such as financial transactions, record deletions, or external communications, must halt execution and await explicit human approval.

Observability requires tracing the complete execution graph. Every model call, prompt token count, tool latency, and state transition should be indexed with distributed tracing standards to enable real-time debugging and regression testing.

When Workflow Automation or a Chatbot Is Enough

A critical engineering mistake is deploying an autonomous agent where deterministic logic suffices. Autonomous agents introduce non-deterministic execution paths, higher latencies, and variable token costs. Engineering leaders should evaluate alternative approaches before committing to an agentic architecture:

If business processes follow predictable, rule-based decision trees with clear inputs and outputs, implementing custom workflow automation provides sub-second execution, deterministic reliability, and minimal operating costs. Similarly, for straightforward customer inquiry routing without tool execution, standard conversational chatbots remain the more cost-effective choice.

Autonomous agents should be reserved for problems characterized by high ambiguity, dynamic API coordination, complex multi-hop reasoning, and open-ended goal achievement.

Architectural Decisions Summary

Planning an autonomous system requires explicit architectural trade-offs across five core dimensions:

1. Reasoning: Choose fixed state-machine graphs for high predictability, or dynamic loops for open-ended problem solving.
2. Tool Execution: Enforce strict parameter validation and run tool calls in isolated sandboxes.
3. Memory: Separate short-term scratchpads from long-term vector stores to manage token expense.
4. Orchestration: Decompose monolithic systems into modular orchestrator-worker workflows.
5. Safety: Enforce mandatory human approval checkpoints on irreversible actions.

Conclusion and Implementation Roadmap

A successful AI agent architecture balances autonomy with rigorous software engineering principles. By treating model reasoning, tool execution, state persistence, orchestration, and guardrails as modular components, engineering teams can build dependable autonomous systems that deliver measurable business value.
